BTU Tire Building Machine

Bead Treading Unit — automates and optimizes tire component assembly, focused on the bead area for high-quality, durable tires. Serves motorcycle, passenger, truck, and industrial tire production. See also the STB Tire Building Machine for standard bicycle tires.

Inquire About This Model
BTU Tire Building Machine, full view

Upgrade your tire production with our advanced BTU (Bead Treading Unit) Tire Building Machine. This machine automates and optimizes the assembly of tire components, focusing on the bead area for high-quality, durable tires.

Quick Facts
FunctionBead, tread & carcass assembly
ControlPLC + HMI touchscreen
Quality checkReal-time sensor & camera inspection
ApplicationsMotorcycle, passenger, truck, industrial tires
Photo Gallery

Bead assembly, controls, and material feeding.

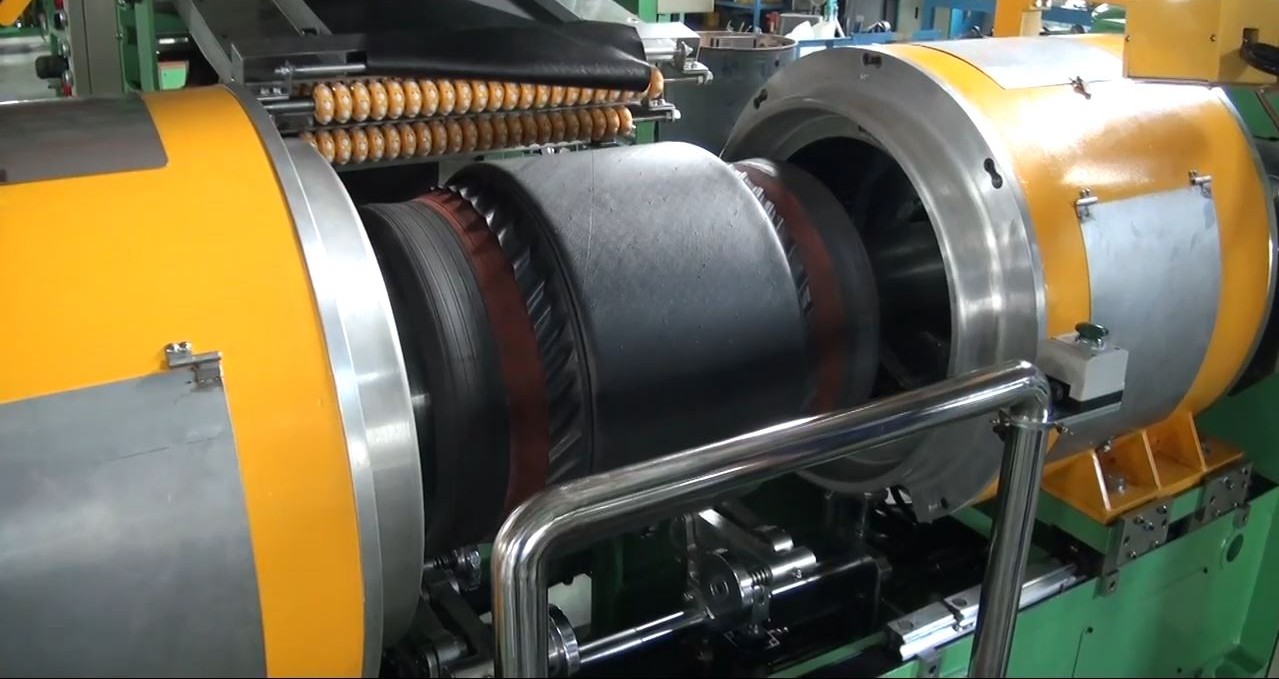

BTU bead ring drum mechanism, detail view

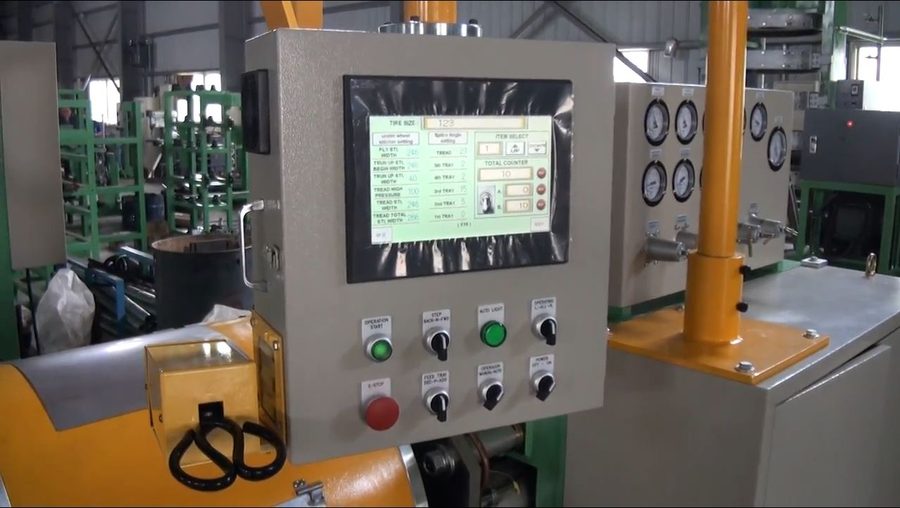

BTU HMI control panel showing tire size and tread settings

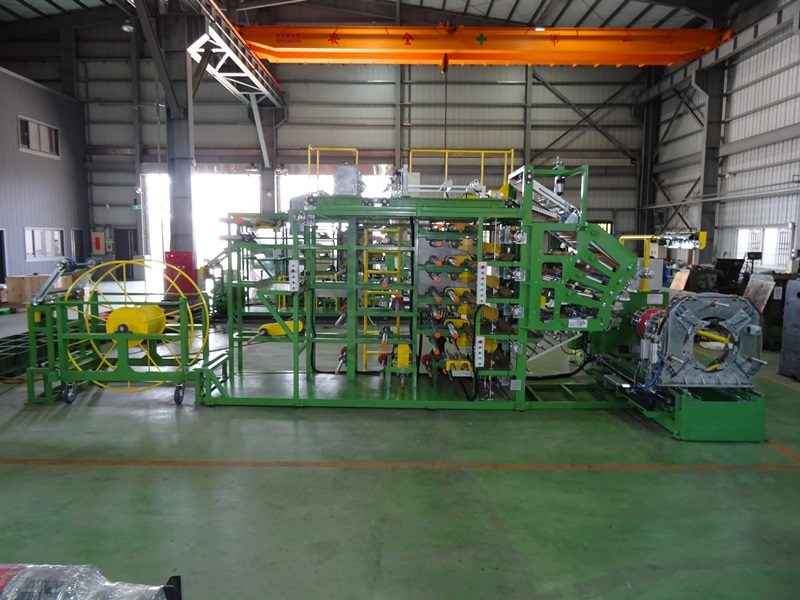

Material feeding and carcass assembly section

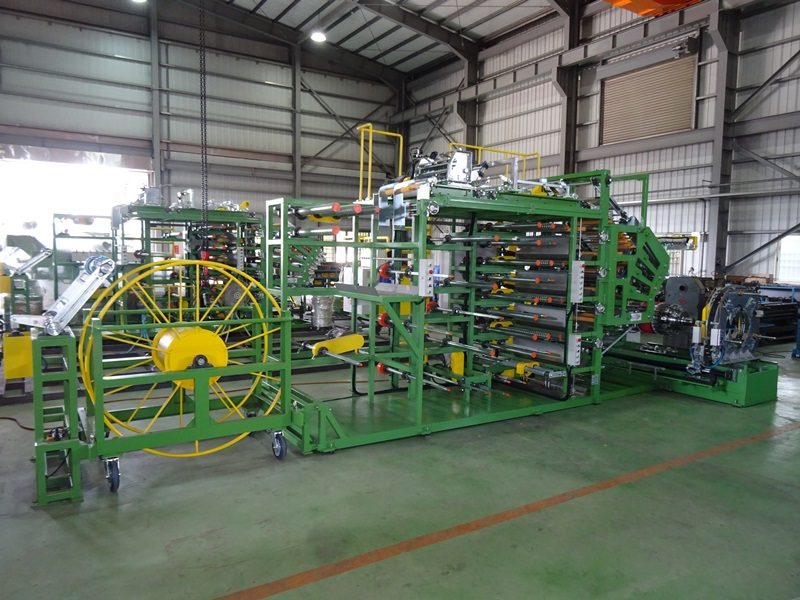

Material feeding and carcass assembly section, alternate view

Key Features

  • Precision bead assembly — ensures accurate shaping and secure attachment of bead wires
  • Efficient tread application — applies tread evenly and securely to the tire carcass
  • Advanced carcass assembly — aligns and tensions rubber plies for a strong tire structure
  • Comprehensive controls — easy monitoring and control with PLC and HMI
  • Quality assurance — real-time inspection with sensors and cameras

Benefits

  • High precision — superior tire quality with accurate component placement
  • Increased efficiency — reduces manual labor and speeds up production
  • Consistent quality — uniform quality across all tires
  • Versatile applications — suitable for various tire types and bead configurations

Ideal for producing motorcycle, passenger, truck, and industrial tires, meeting high performance and safety standards.

See it in operation

Machine in action.
