Electric steam heating hydraulic presses for EVA sheet, foam and footwear production, including sheet stock, midsoles, outsoles, mats and molded EVA products.
Large-format sheet and board production. Six hot-plate layers with 125 mm spacing.
The workhorse for sheet stock, including EVA foam sheet, yoga and exercise mats, rubber sheet and sole stock, floor tiles, car mats, industrial rubber molding and related pressing applications.
Seven sizes from 300 to 1,200 tons. Plate size is selected according to required sheet dimensions and production output.
Footwear and foam molding. Two hot-plate layers with 140 mm spacing.
Designed for molded products such as rubber soles, cupsoles, EVA, PE and PVC foam, rubber sponge and other compression-molded components.
Three sizes from 90 to 175 tons, with deeper daylight for molds and formed products.

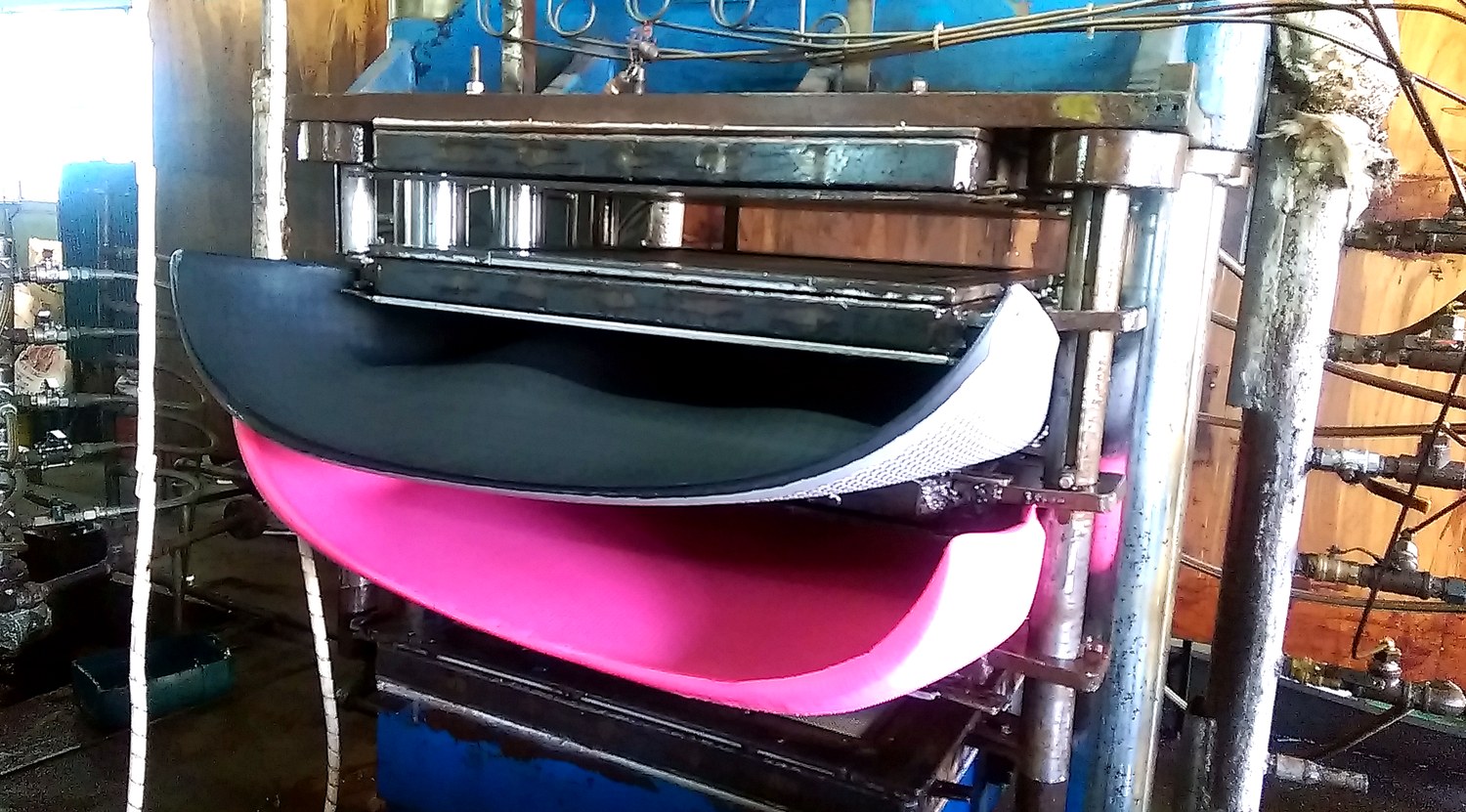

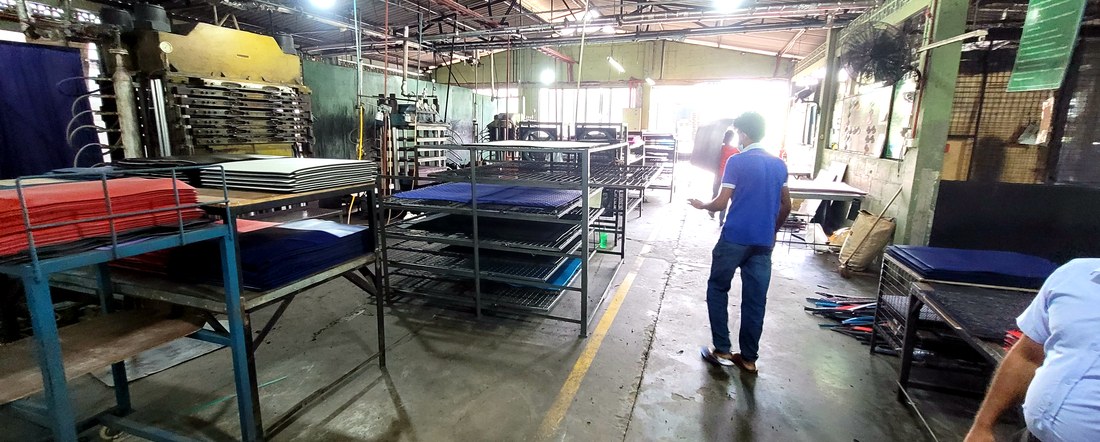

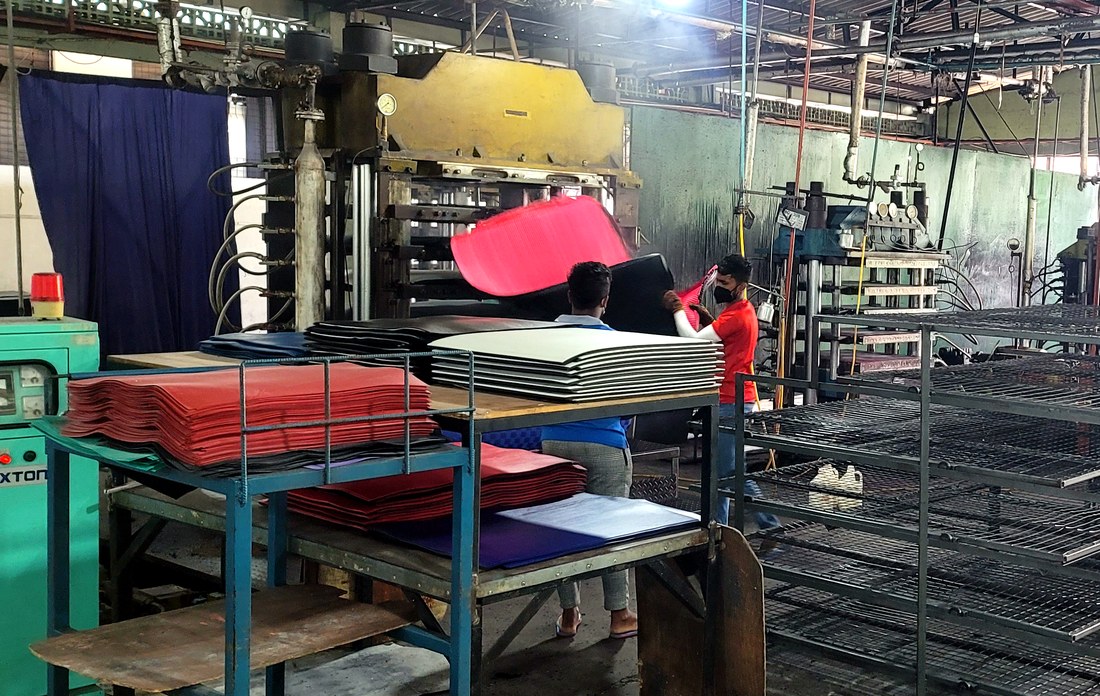

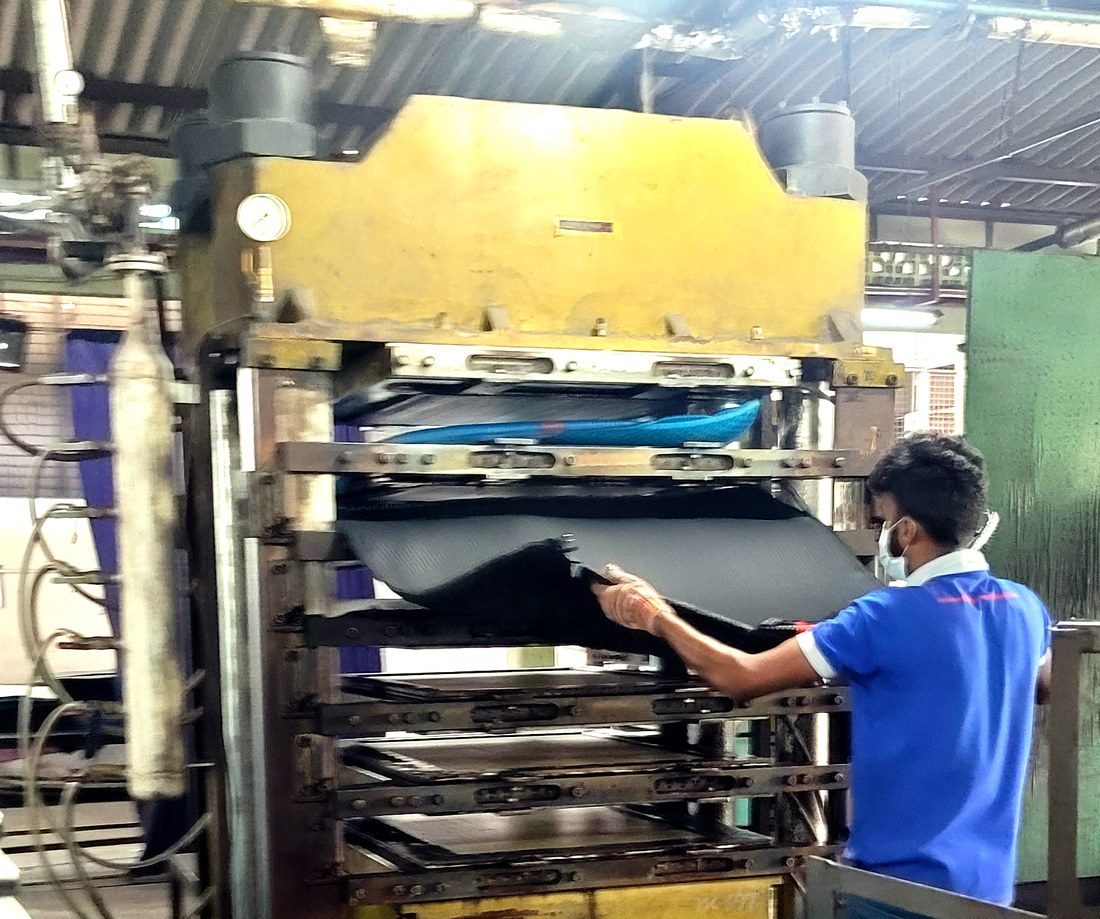

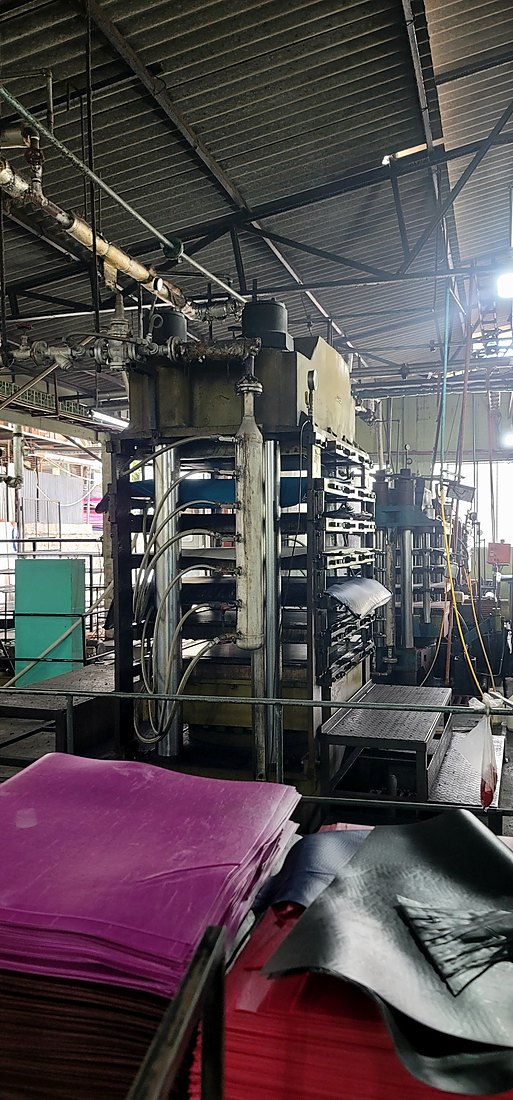

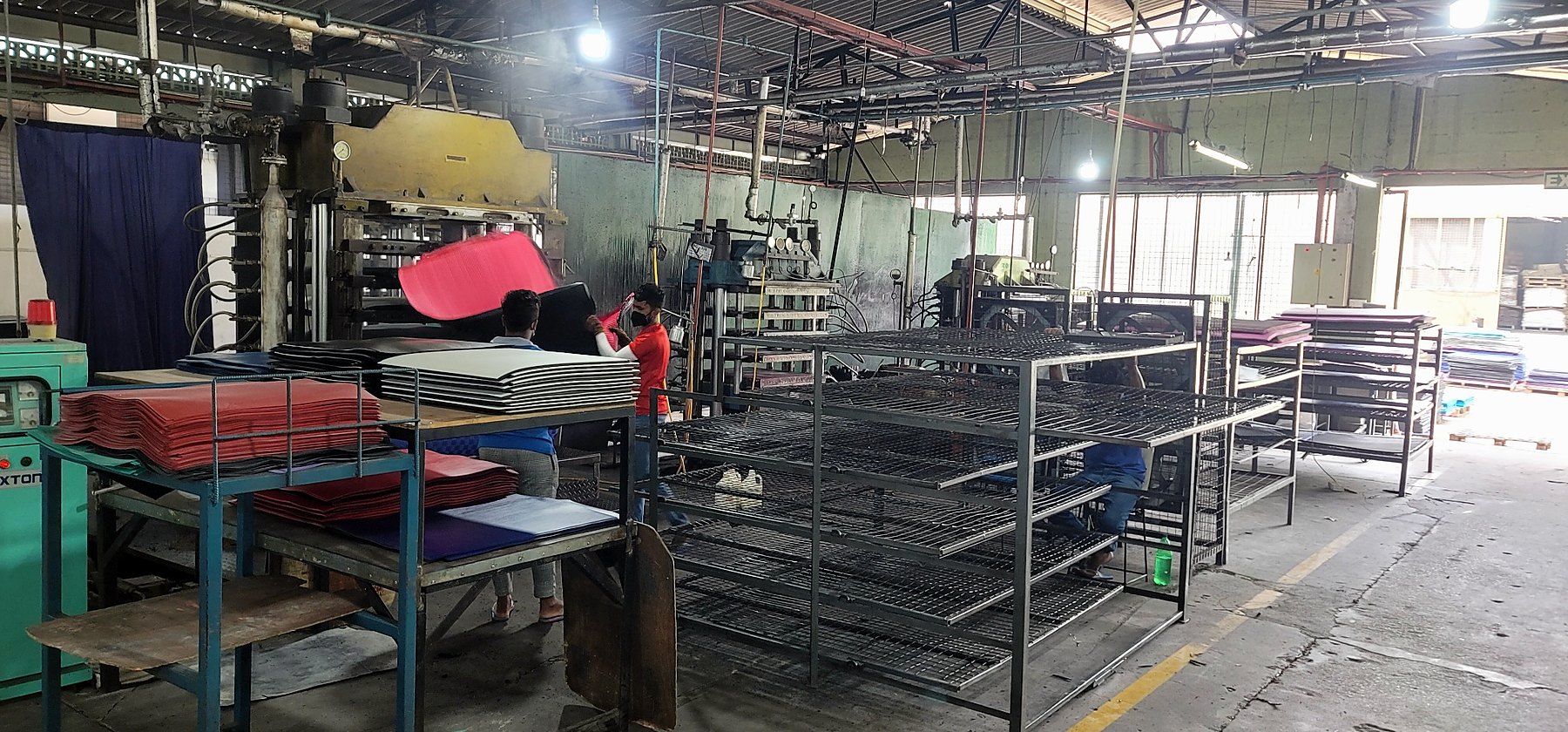

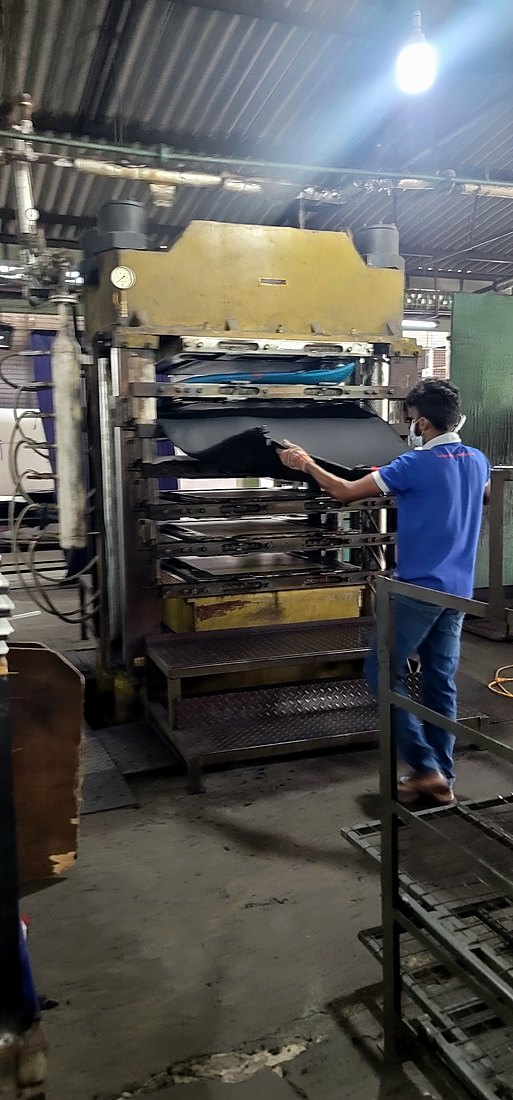

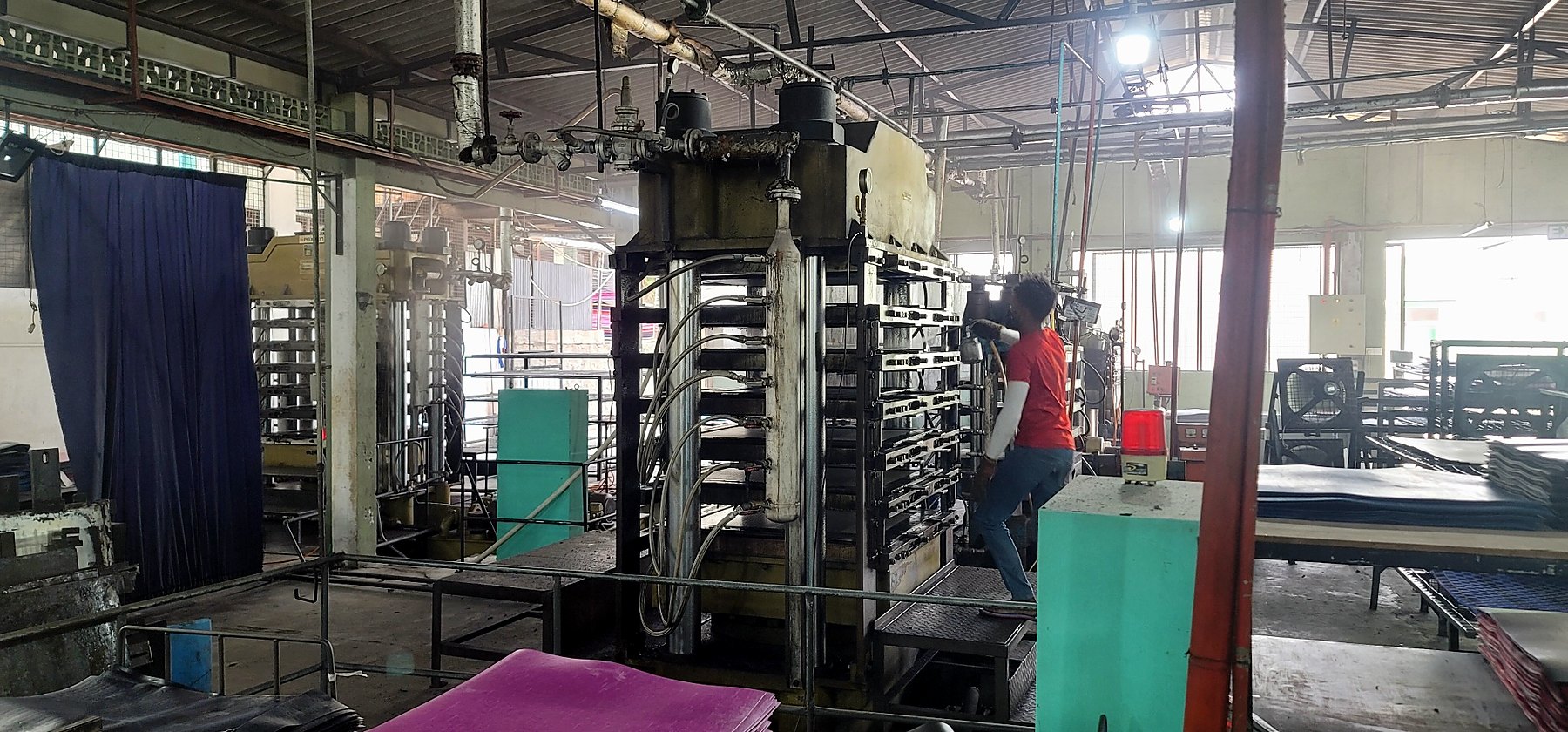

These photographs show the press, sheet handling and production-floor arrangement in an operating plant.
| Model | Pressing Capacity (Ton) | Hot Plate Size (mm) | Closing Speed (mm/s) | Opening Speed (mm/s) | Motor |
|---|---|---|---|---|---|
| PX-EF-18" | 300 | 910 × 910 | 500 / 20 | 500 / 3 | 10 HP |
| PX-EF-22" | 450 | 910 × 1000 | 750 / 30 | 750 / 3 | 7.5 HP + 10 HP |
| PX-EF-24" | 520 | 1000 × 1100 | 750 / 26 | 750 / 3 | 10 HP × 2 |
| PX-EF-26" | 600 | 1100 × 1200 | 750 / 26 | 750 / 3 | 10 HP × 2 |
| PX-EF-30" | 800 | 1200 × 1200 | 750 / 26 | 750 / 3 | 10 HP + 15 HP |
| PX-EF-32" | 1000 | 1350 × 1500 | 750 / 26 | 750 / 3 | 10 HP × 2 + 15 HP |
| PX-EF-36" | 1200 | 1400 × 1600 | 750 / 30 | 750 / 3 | 10 HP × 2 + 20 HP |
| PX-SP-10 | 90 | 440 × 440 | — | — | 7.5 HP |
| PX-SP-12 | 125 | 460 × 460 | — | — | 10 HP |
| PX-SP-14 | 175 | 610 × 610 | — | — | 15 HP |
Send us your target product, capacity, process and available plant conditions. We will review the equipment scope with you.
