Rubber-Plastic Compound Line

Sheeting Machine

Four-roll sheeting calender for rubber sheet, lamination and foam processing. Eleven roll sizes from 10″ to 24″.

Inquire About This Model EVA Sheet Press

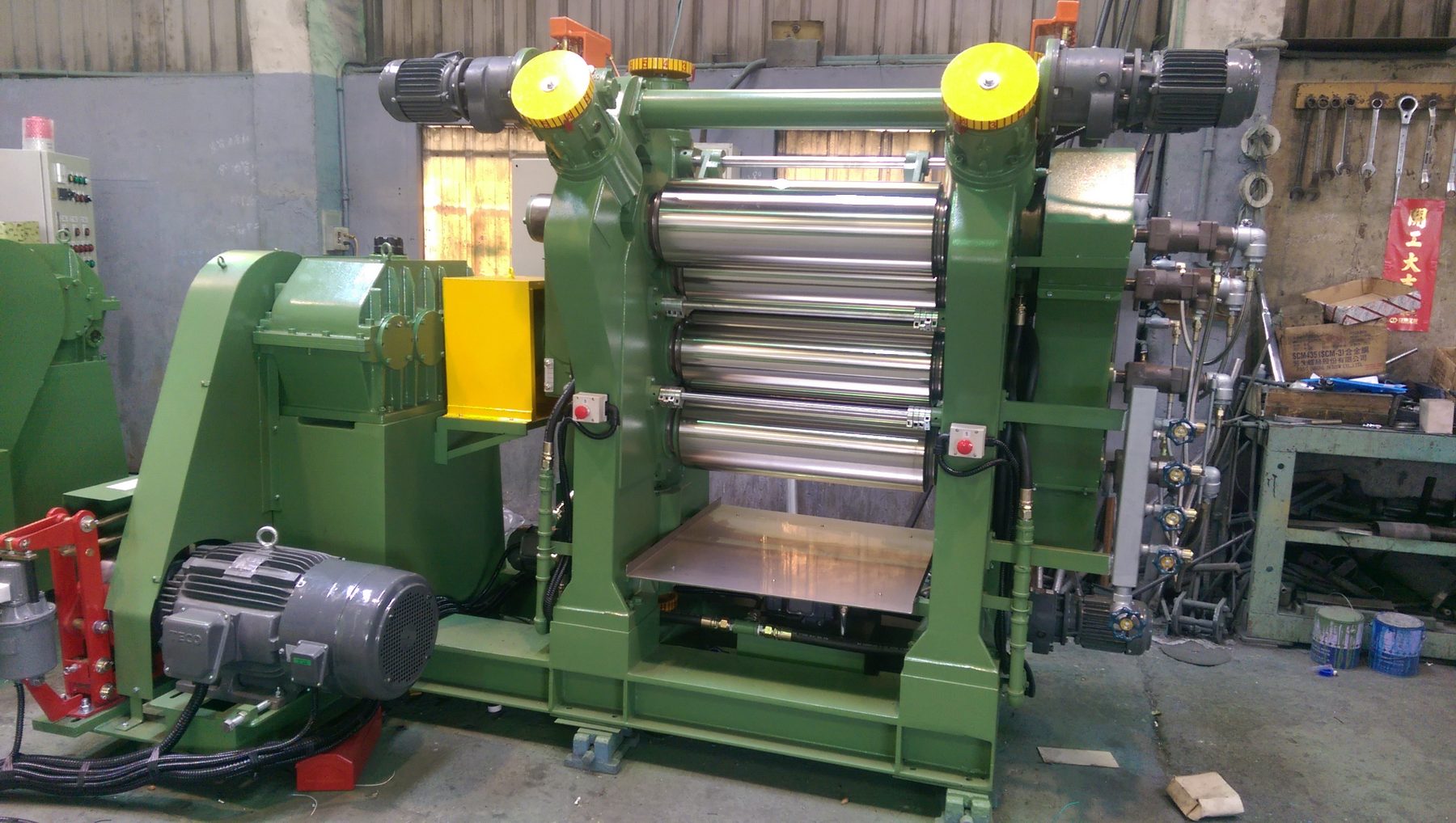

Four-roll sheeting machine with drive motor, gearbox and take-off tray

The same four-roll platform as the cord calender, configured for a different job. Instead of coating fabric, it draws compound down through the roll stack into a continuous sheet of controlled thickness — for rubber sheet, for laminating one compound onto another, and for feeding foam and EVA processing.

The rolls are heated and cored, the gaps set on graduated wheels at each end, and the sheet comes off the bottom roll onto a take-off tray.

Quick Facts
ConfigurationFour-roll sheeting calender
Roll sizes10″ to 24″ (11 models)
Main motor25 – 200 HP
ApplicationsRubber sheeting, lamination, foam processing
MaterialsRubber, EVA, foam compounds
Specification

Eleven roll sizes.

Specification — Sheeting Machine
ModelRoll Size (Ø × L)Main Motor
PX-SH-10x3010″ × 30″25 – 30 HP
PX-SH-12x3612″ × 36″30 – 40 HP
PX-SH-14x3614″ × 36″40 – 50 HP
PX-SH-14x4214″ × 42″40 – 50 HP
PX-SH-16x4216″ × 42″50 – 60 HP
PX-SH-16x4816″ × 48″50 – 60 HP
PX-SH-18x4818″ × 48″75 – 100 HP
PX-SH-22x6022″ × 60″125 – 150 HP
PX-SH-22x7222″ × 72″125 – 150 HP
PX-SH-24x7224″ × 72″150 – 200 HP
PX-SH-24x8424″ × 84″150 – 200 HP

Roll face length is available in more than one width at several diameters — specify the sheet width you need and we will match the frame.

Photo Gallery

Detail.

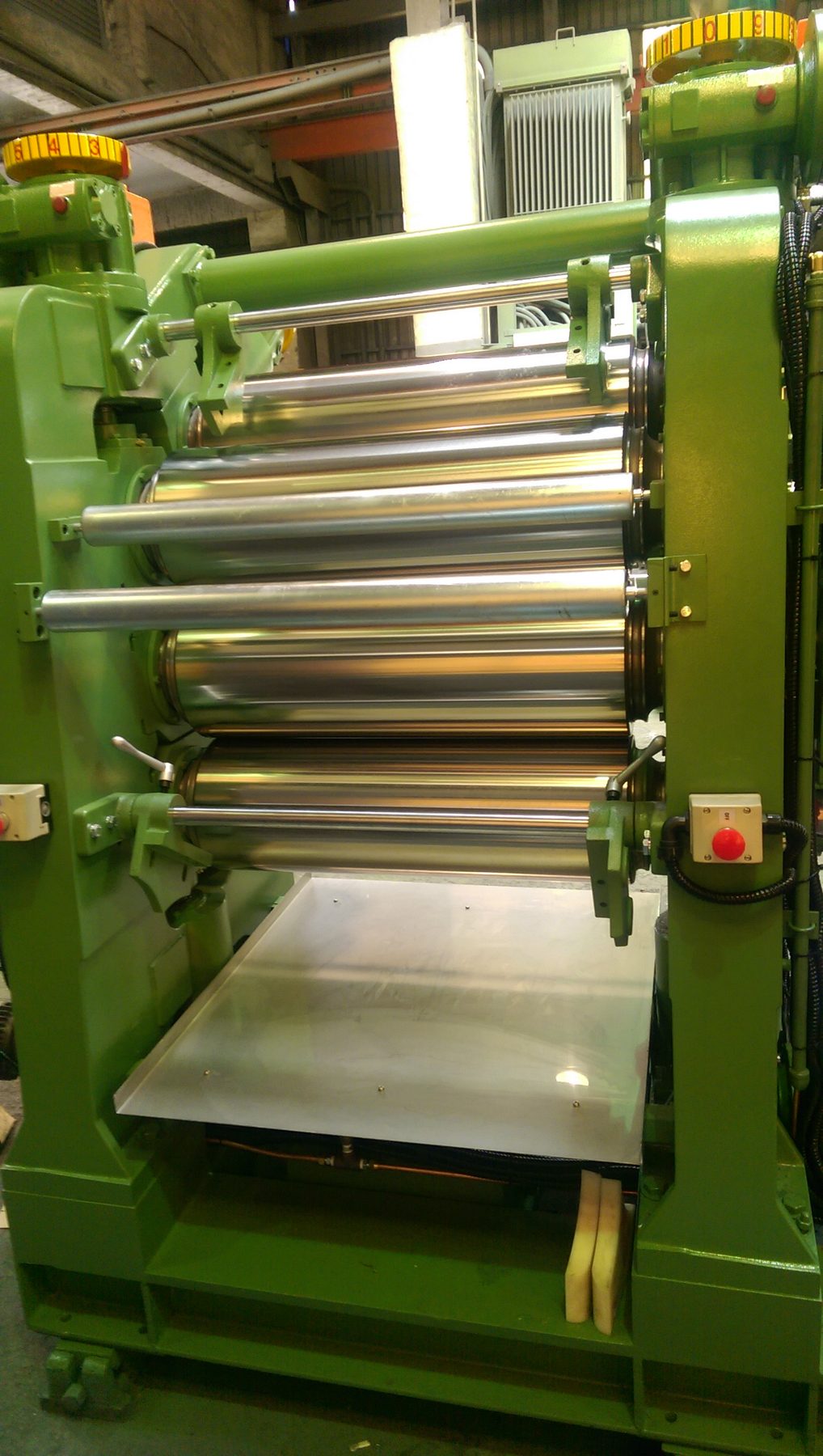

Four-roll stack with take-off tray, viewed from the operating side

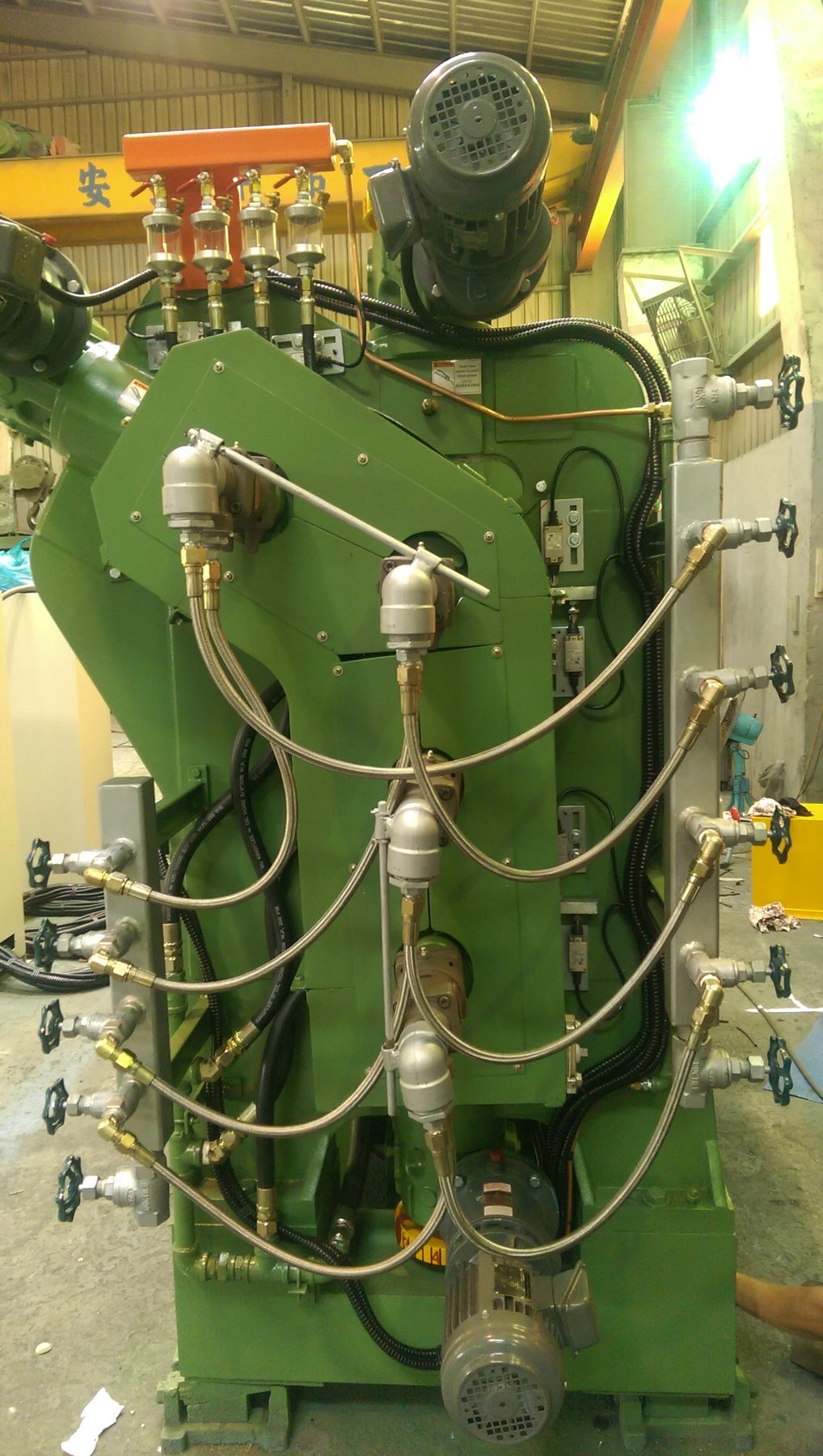

Side frame detail: lubrication points, roll bearing feeds and drive motor

Key Features

  • Four-roll stack — sheet gauge built up progressively through the nips
  • Independent gap setting — graduated adjustment at both ends of each roll
  • Cored rolls — heated or cooled to suit the compound
  • Central lubrication — sight-glass feeders to the roll bearings
  • Take-off tray — sheet delivered flat off the bottom roll

Sheeting or topping?

Same four rolls, different purpose. This machine makes sheet — rubber, EVA, foam, laminate. The Nylon Cord Calender coats fabric, and carries the cord handling, tension control and variable-speed drive that tire cord work requires.

If you are making sheet, this is the machine. If you are topping tire cord, it is not.
